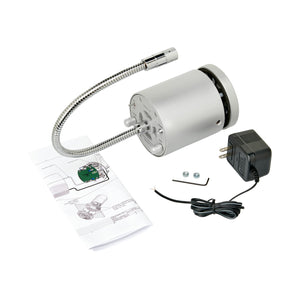

haventech sc-100 window intercom, rugged aluminum buildwhats in the box, instruction sheet , cabling. AC power converter.

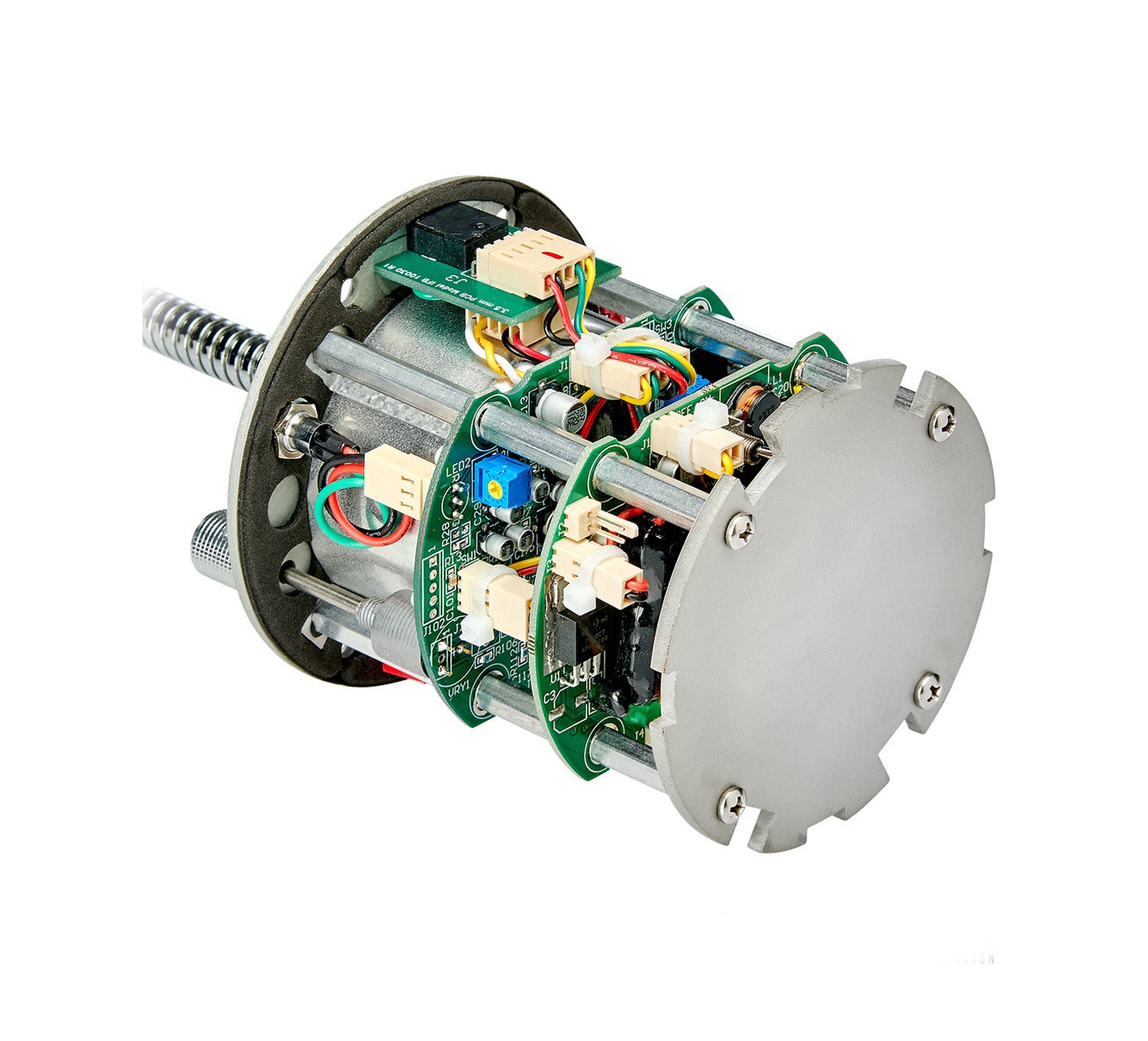

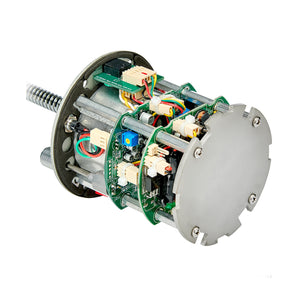

image of haventech window intercom SC100 internal components. and bullet resistantplate mounted

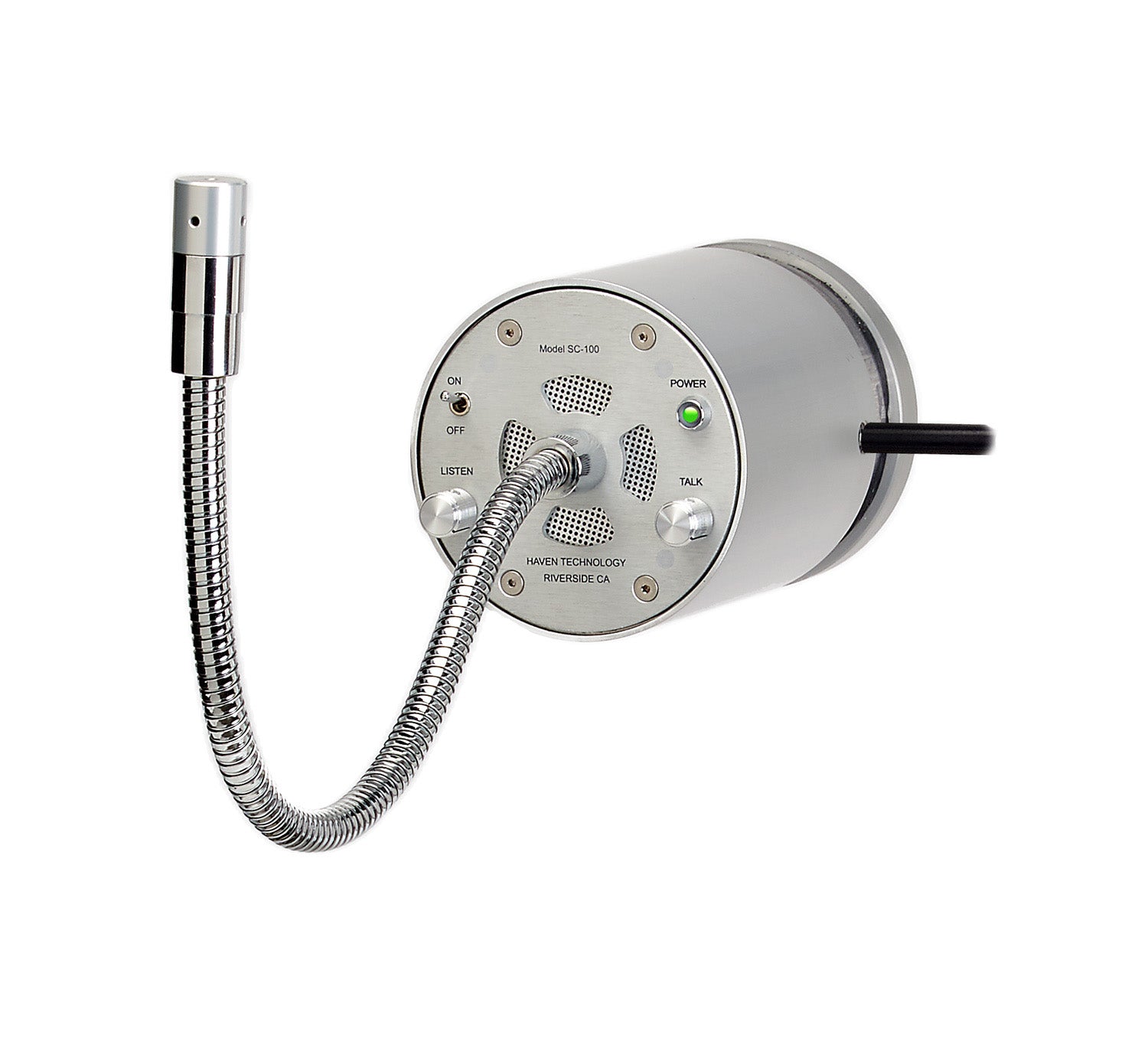

SC-100 Amplified Window Intercom Made in America

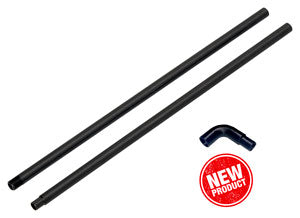

Conduit and elbow to hide wires on SC-100 window intercom

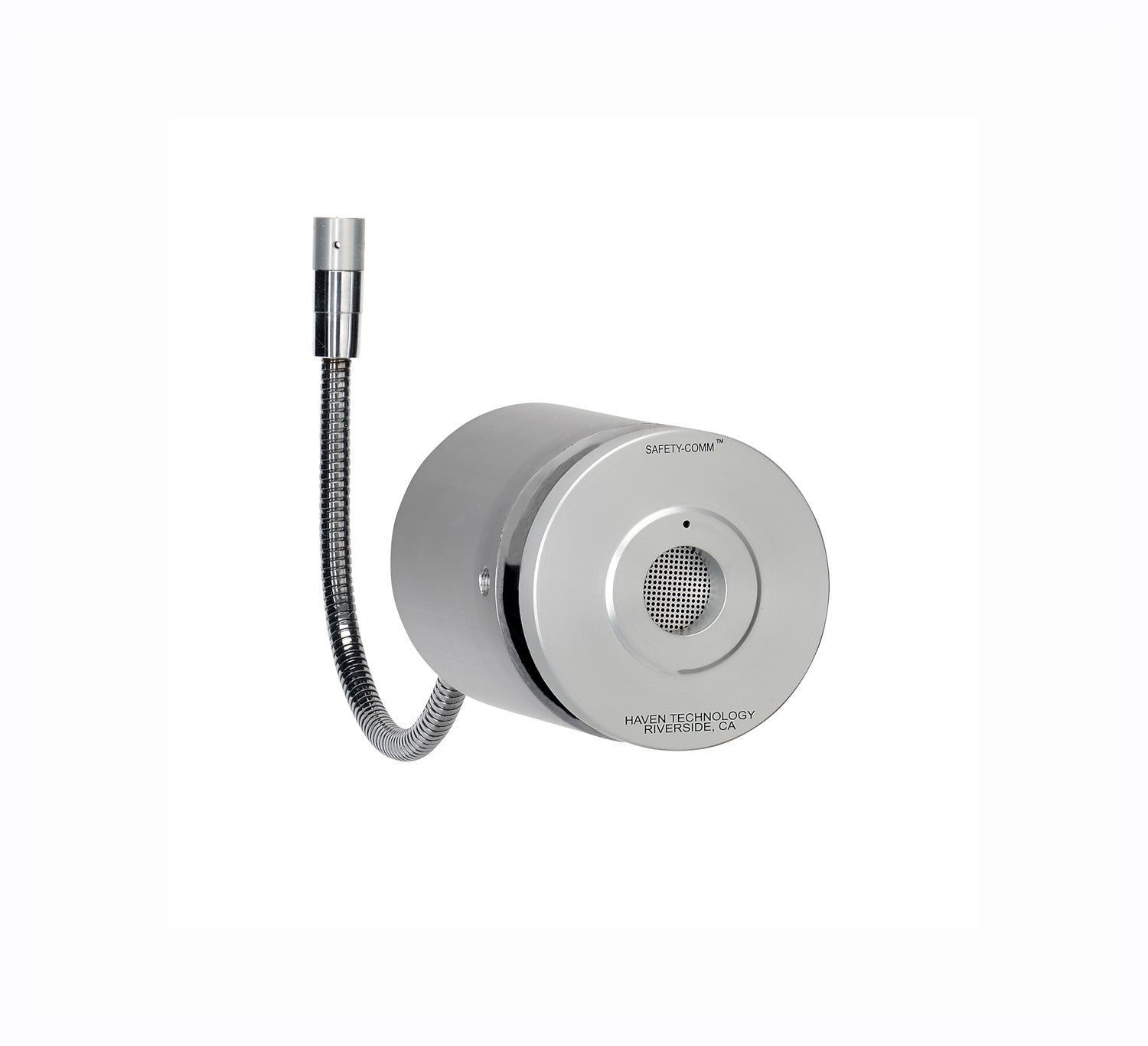

haventech intercoms SC-100, SC-100AC, SC-100L customer side viewof faceplate with mi hole a nd speaker grill

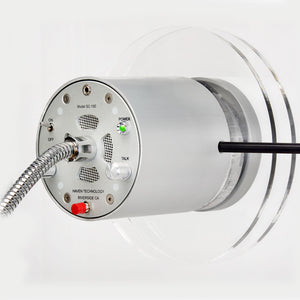

Image showing clear mounting adapters for SC-100 window intercom by HavenTech intercoms

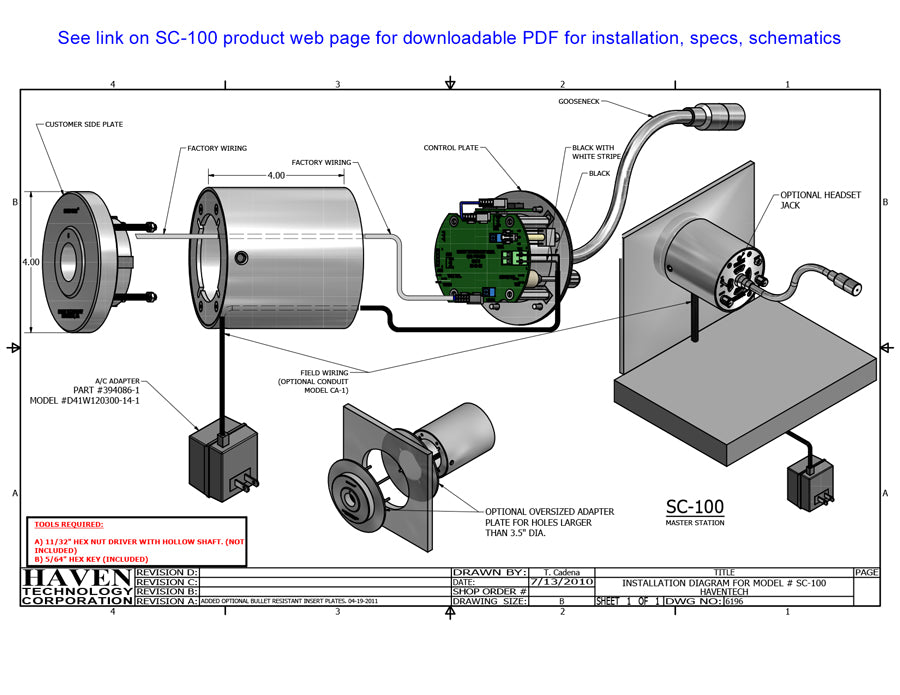

haventech SC-100 window intercom drawing installation

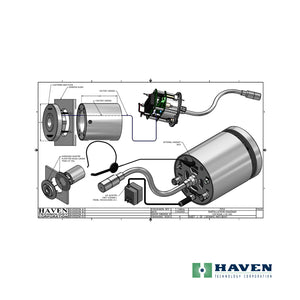

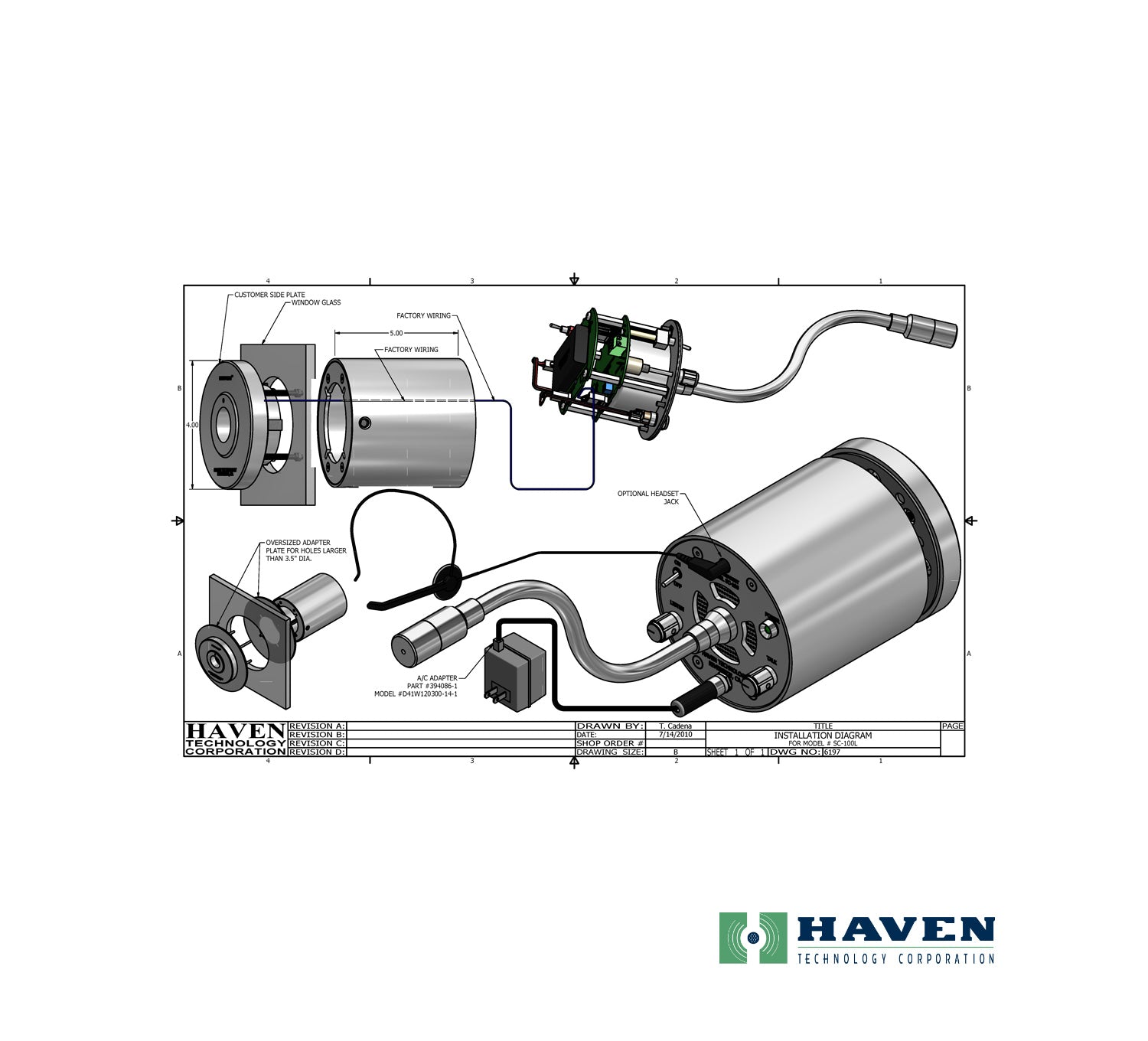

Haven-Tech-SC-100L-install-guide drawing

SC-100 Amplified Window Intercom Made in America

$1,200.00

( / )
Unavailable

Please select all options.

Controlled Communication for Secure Service Environments

The SC-100 is a window intercom designed for organizations that operate staffed service points behind glass or secure barriers, where communication must remain clear, controlled, and dependable throughout the day.

These environments prioritize staff authority, predictable operation, and reliability over advanced digital features. The SC-100 reflects those operational realities.

The SC-100 is deployed in facilities where staff must communicate clearly without surrendering control of the interaction.



Typical environments include:

  • Law enforcement and probation offices

  • Detention and correctional facilities

  • Government service and payment windows

  • Healthcare intake and mental health facilities

  • Transit, ticketing, and secure reception areas

These are not casual interactions. They are structured, repetitive, and often noisy by design.

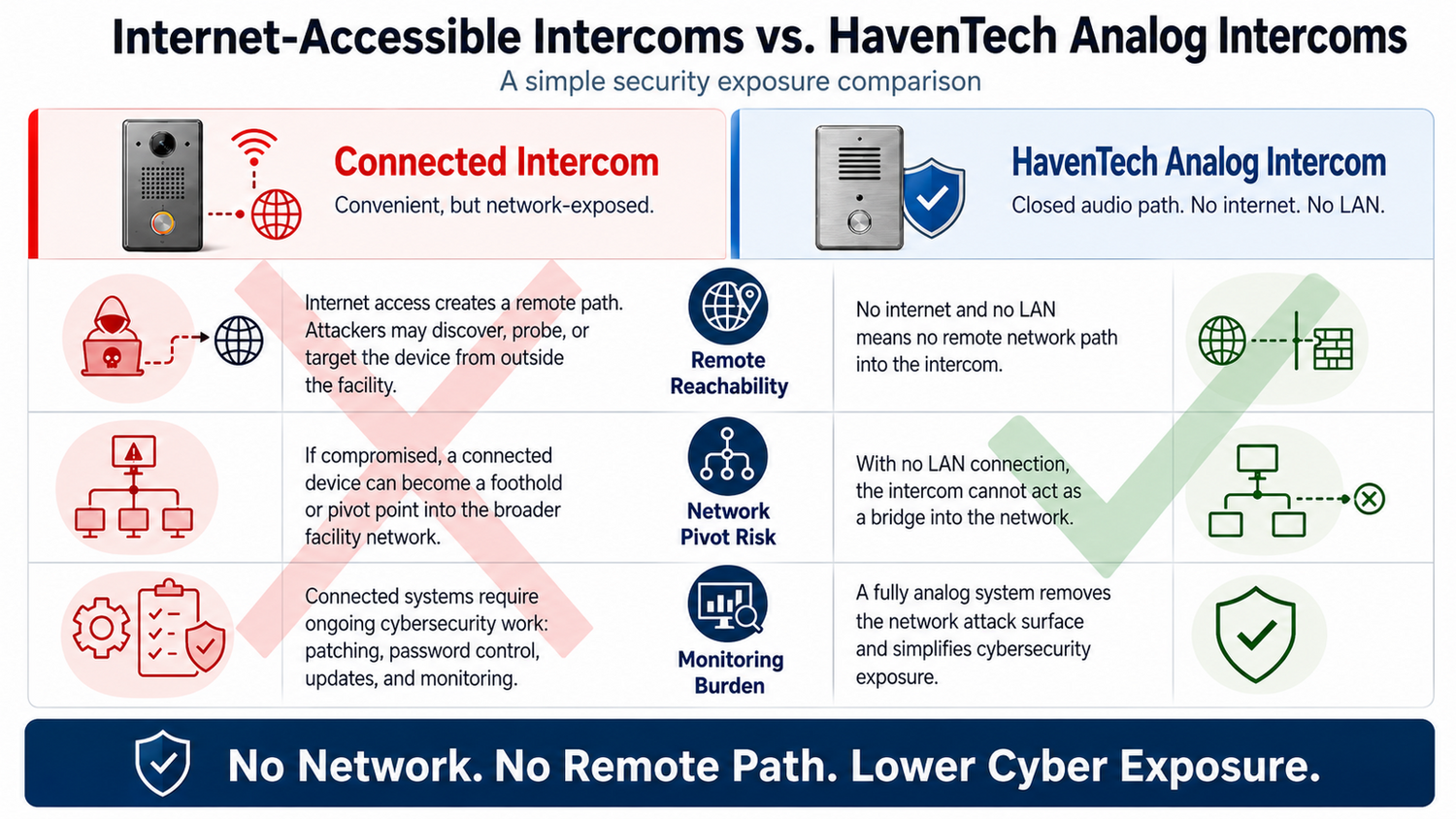

Analog, Non-Networked Audio

The SC-100 operates on a dedicated analog audio path.
It does not connect to any network or internet service.
The system cannot be accessed remotely.
No software or firmware is used.
Audio is transmitted in real time only.

This approach eliminates network exposure and ensures consistent operation after installation.

Optional Operator Control Features

(Specify one — not available together)

Push-to-Talk (PTT)

Push-to-Talk is used when communication must be turn-based to prevent overlapping speech.

It is commonly selected in:

  • Busy intake windows

  • Multi-visitor environments

  • High ambient noise settings

Audio is transmitted only when the operator presses the button, ensuring one speaker at a time.

Push-to-Override (PTO)

Push-to-Override is used when staff must retain priority control of the interaction, even when the system operates hands-free.

It is commonly selected in:

  • Law enforcement service windows

  • Detention and probation facilities

  • Situations requiring uninterrupted instructions

When engaged, the operator temporarily overrides the visitor’s microphone to maintain clarity and authority.

PTT and PTO are mutually exclusive options. Selection depends on whether the priority is structured dialogue or operator control.





Perfect Applications for HavenTech SC-100 Window Intercom
This type of window intercom is often referred to colloquially as a "window speaker system" or
"glass window speaker", we have heard all the names. The SC-100L is (rechargeble Lithium-ion battery)
or the SC-100AC (AC power converter) is the most popular choice of our customers due to its weather resistant
customer side and ease of installation. In less than an hour, your employees and customers will be able to

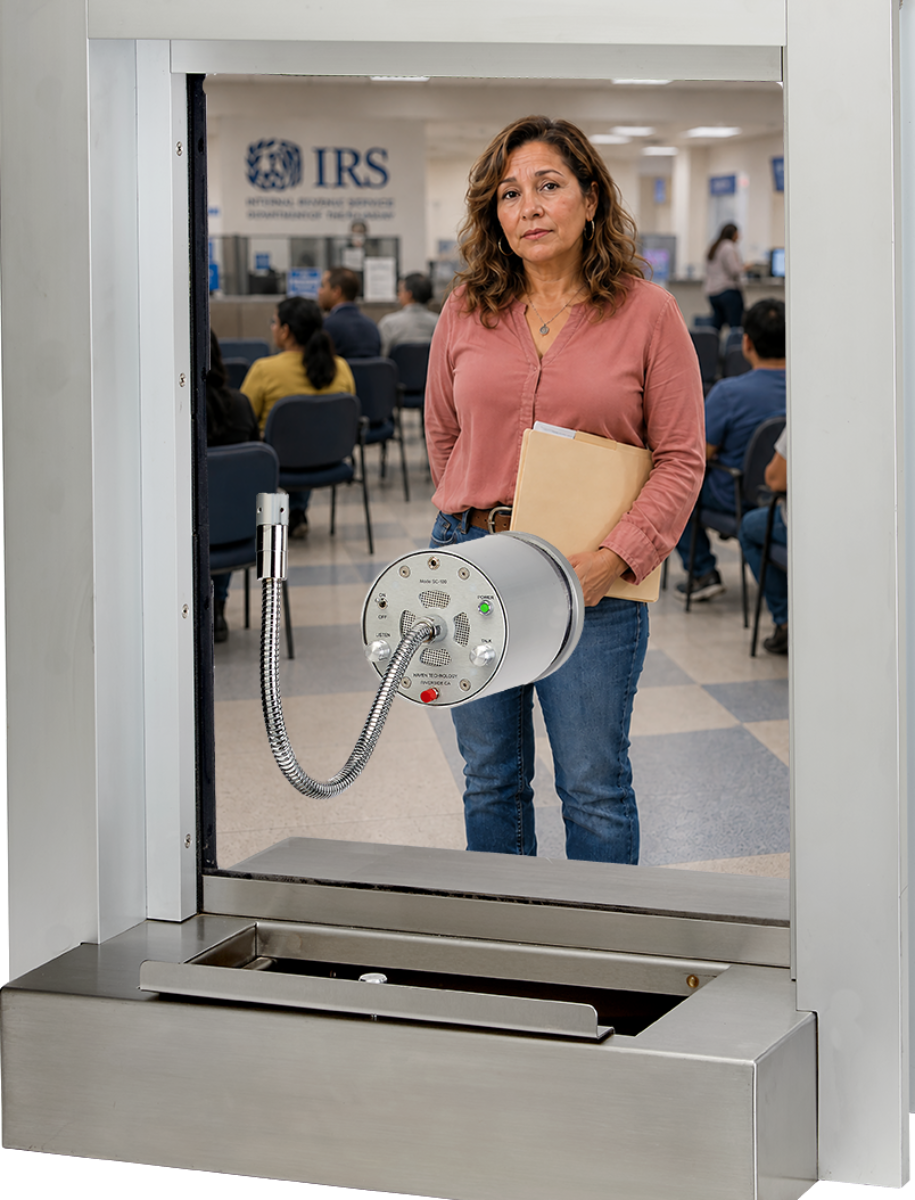

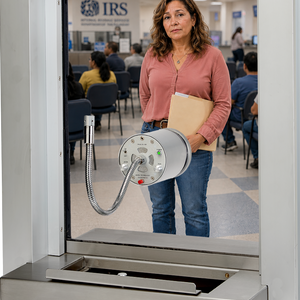

communicate using normal voice levels. This talk-thru window intercom mounts in the hole in standard glass
or bullet-proof glass barrier. Headsets, bullet resistance and more options.
Payment Windows Stadium Ticket Offices Parking Lots Airport TSA, Bus & Train Terminals
Theater Box Offices Mental Health Facilities Hospitals, Health Clinics Houses of Worship
Bank Teller Windows Amusement Parks Night Clubs, Entertainment Detention Centers, Prisons, Jails

HavenTech SC-100 Series

Rechargeable Lithium-ion battery
or
AC power converter

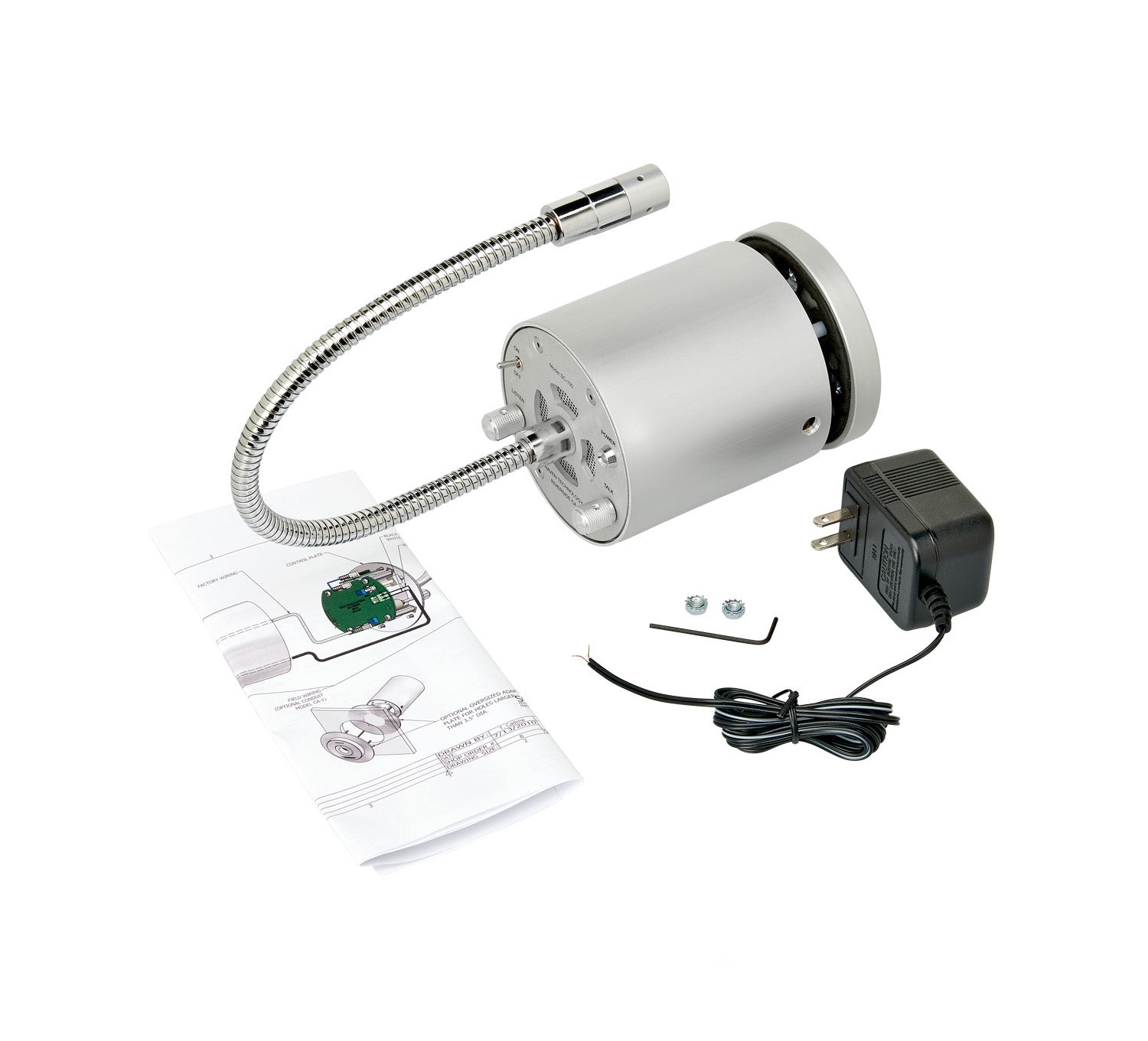

"What's in the Box"

SC-100L with PTO "Push to Override" &
3.5mm wireless headset jack


Optional Features for SC-100AC & SC-100L

Key Features of "Push to Talk"

"Push to talk" (PTT) requires users to press the Red button to activate the microphone to transmit their voice. This feature manages clear communication by:

  • Preventing overlapping conversations
  • One-way communication: Only one person can speak at a time
  • Clarity in noisy settings: Avoids confusion in loud environments
  • Controls the communication flow

PTT is an effective method for clear, controlled two-way communication in intercom systems, particularly beneficial for business customers operating in noisy environments.

Key Features of "Push to Override"

"Push to Override" (PTO) allows users to temporarily take control of the communication channel by pressing the Red button overriding normal settings. This feature is useful when the system is in hands-free or automatic mode.

By pressing the Red "push to override" button,

  • The operator controls the interaction between the parties.
  • Bypasses automatic settings to guarantee clear communication even in challenging ambient noise surroundings
  • A very effective tool to override the visitor's mic, thereby giving uninterrupted speech to the operator
  • Provides manual control over the intercom's audio system

PTO is an effective method for managing the controlled two-way communication in our window intercom systems, and particularly beneficial for business customers operating in noisy environments.

Specify PTT or PTO. These features are not available together.

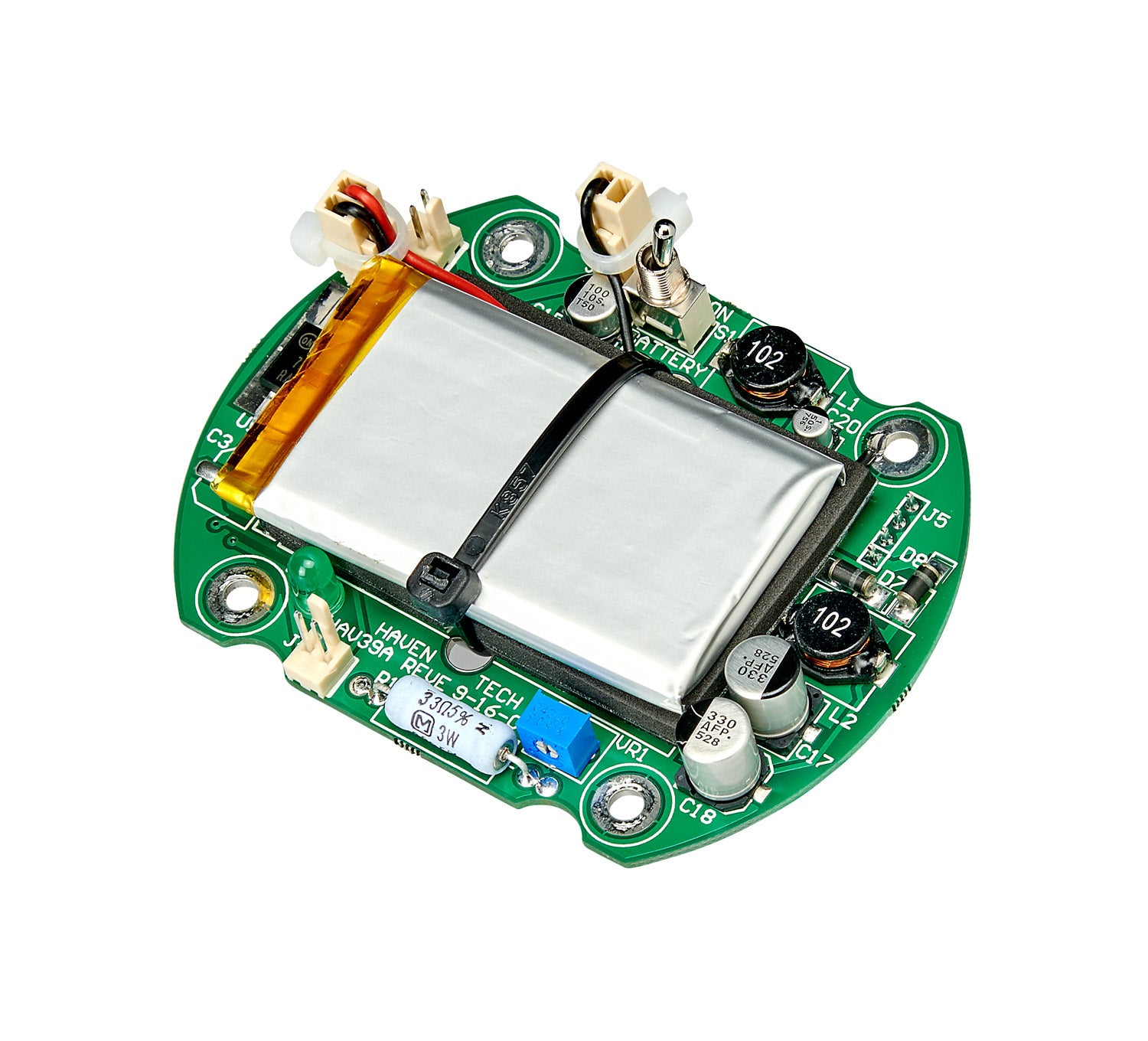

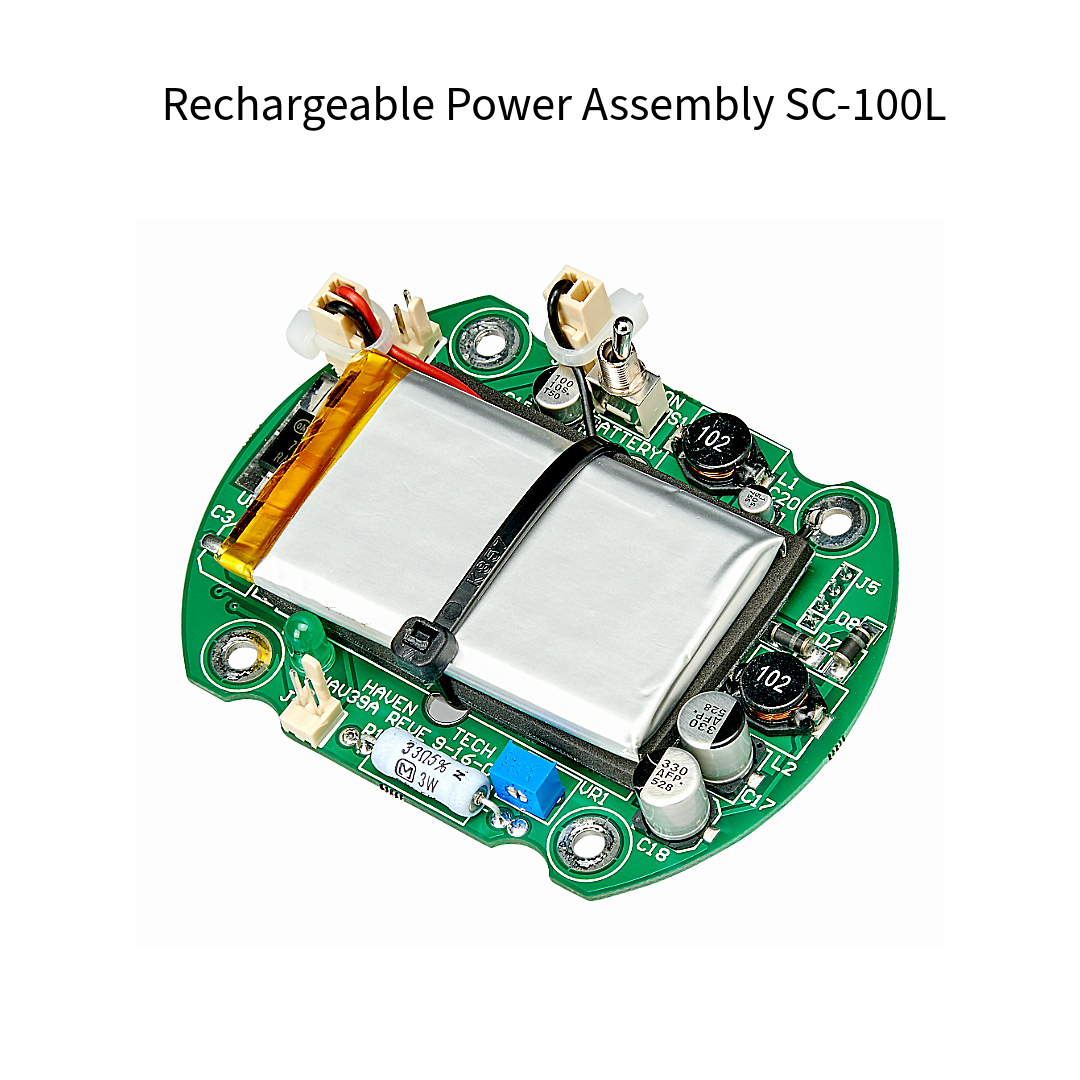

Talk all day with Rechargeable Lithium-ion battery

  On an overnight charge, the internal rechargeable Lithium-ion battery provides 8-10
 hours of duty time.* Many customers prefer the battery version because there is
no cable or conduit to obstruct the window.

HavenTech Intercom, SC-100L has a lithium ion battery giving 8-10 hours of duty time. Made in America

A jack on the Staff side of the unit for connecting
the battery charger, which requires a standard 110v wall outlet nearby.
*duty time = assumes 30% talk time, 70% idle time



Easy, less than 1 hour installation.

Tighten 4 nuts. Nut driver required.
Connect 1 wire harness clip.
Tighten 4 screws.

Mounting Adapter Options


Mounting Adapters are not needed for hole sizes 3" - 3.5"
Mounting Adapters 1 - (set of 2) are necessary for proper installation of a
Window Intercom into pre-existing mounting hole sizes of 5"- 6" in the barrier

HavenTech Mounting Adapters are available in the sizes and materials shown.
Black Aluminum, Clear Acrylic, Bullet Resistant Stainless Steel.

Please carefully measure the diameter of the mounting hole in your barrier.
Below are the typical mounting hole sizes.
Please review these questions about measurements: Helpful questions before placing your order

If Mounting Adapters are required for your
project, please add 1 - (set of 2) to your order.
Sold only in sets of 2.

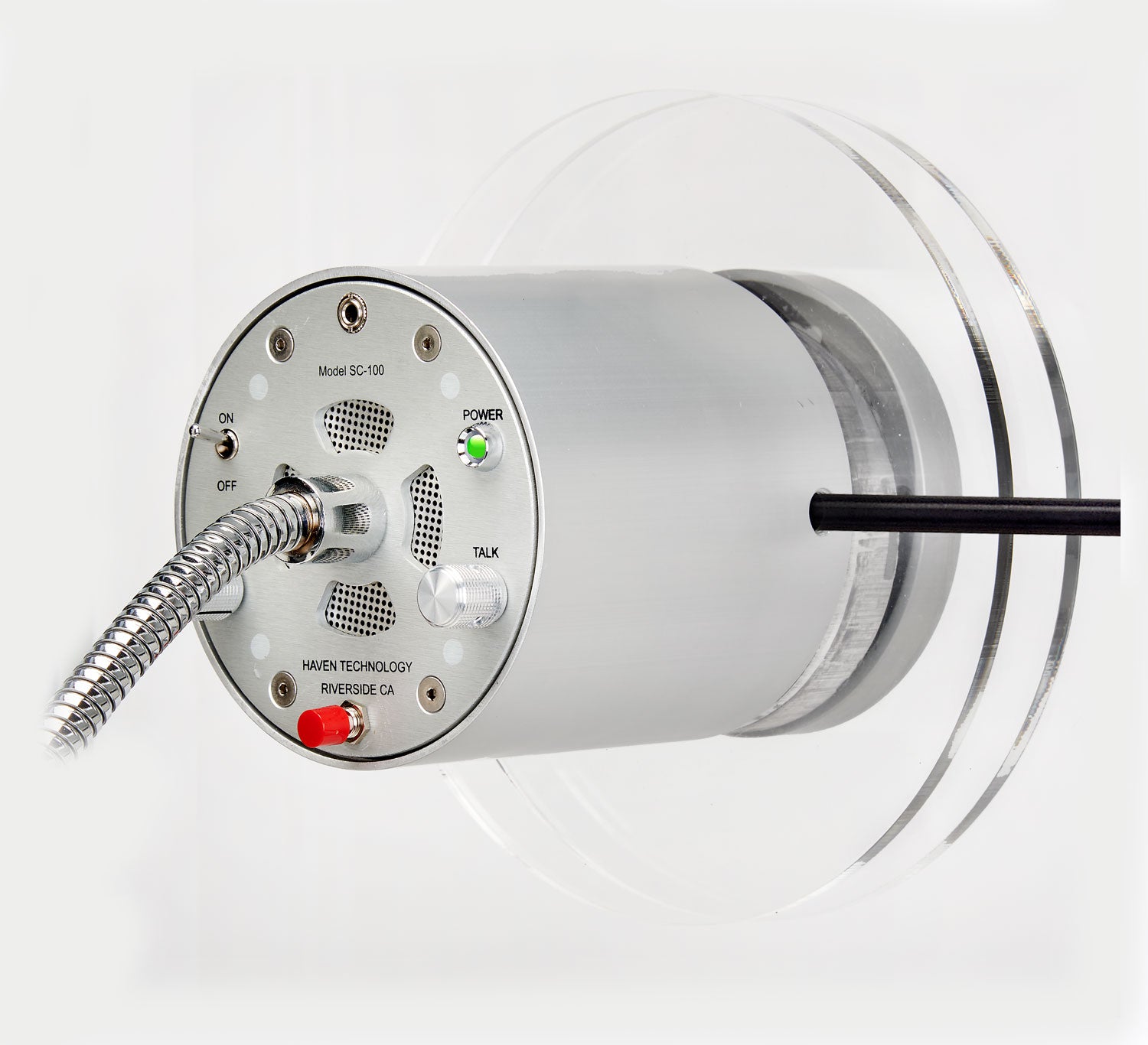

Proper installation of 1 - (set of 2) Mounting Adapters.

             Mounting Adapters for SC-100L Window Intercom







5"- 6" Mounting Adapters for SC-100 and SC-350, Clear Acrylic

Clear mounting adapter for installing a 4: Haventech window intercom into holes larger than 4". Similar mounting adapters are also available in black aluminum and bullet resistant stainless steel. Made in America, Riverside, CA

This Clear Mounting Adapter is required to install a HavenTech Window Intercom in
5" - 6" hole in regular glass. For applications requiring Bullet Resistant Mounting Adapters,
we supply them also. The 3/8th inch (.375") thick clear acrylic adapter is easy to install
with your window intercom.
